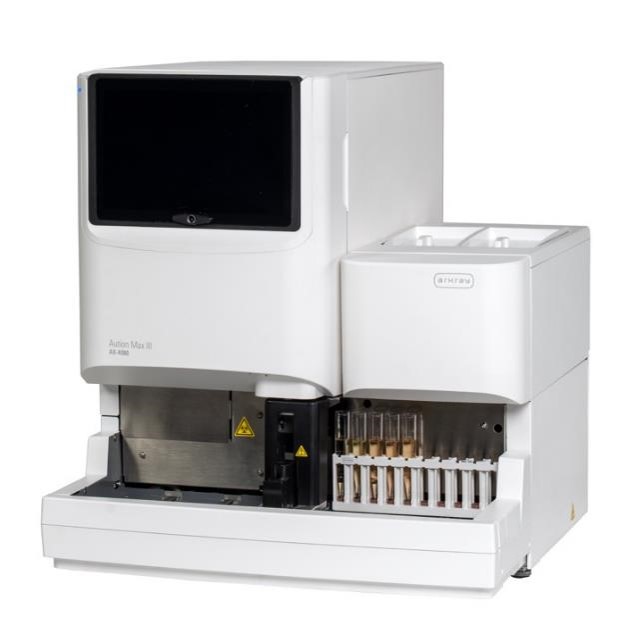

Fully Automated Urine Analyzer
AUTION MAX AX-4080
Deliver intuitive 10-inch tablet operation and on-screen result review, high-throughput testing up to 300 samples/hour with as little as 950 µL of sample, and reliable operation backed by correction functions, abnormal-result detection, and data management.

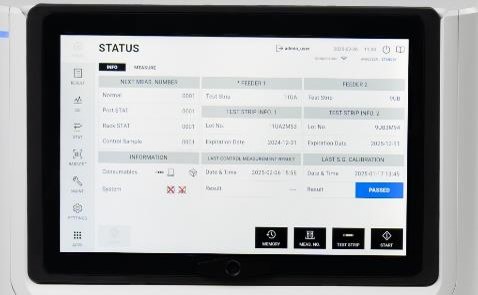

Intuitive operation and result review with a 10-inch tablet
The large color display makes settings and result review easy to understand, and troubleshooting guidance is shown during alerts for smooth operation.
High-speed processing up to 300 samples/hour + testing with low sample volume
Testing is possible with a small sample volume (minimum 950 µL), and the throughput of up to 300 samples/hour supports both high-volume and urgent testing.
High-quality operation supported by correction functions, abnormal-result detection, and data management
In addition to corrections such as temperature and color tone, abnormal color development detection, result storage, and quality control functions help ensure reliable operation.
Specification
| Sample Type | Urine |
| Measurement items | GLU (Glucose), PRO (Protein), BIL (Bilirubin), URO (Urobilinogen), PH (pH), BLD (Blood), KET (Ketones), NIT (Nitrite), LEU (Leukocytes), CRE (Creatinine), ALB (Microalbumin) P/C (Ratio of Protein to Creatinine),A/C (Ratio of Albumin to Creatinine) S.G. (Specific gravity), turbidity and color tone |
| Measurement range | S.G.: 1.000 to 1.050 (Resolution: 0.001) Color tone: Light yellow, yellow, dark yellow, orange, dark orange, brown, dark brown, red, others and colorless Turbidity: Three levels including “clear”, “turbid” and “dense turbid” |
| Measurement principle | Test strip: Reflectance measurement S.G.: Reflection refractometry Color tone: Light-transmission measurement Turbidity: Light-scattering measurement |
| Measurement wavelength | Light source for test strip measurement: White light source |
| Test strip reaction time | Approximately 60 seconds |
| Test strip storage | Two test strip storage compartments, each of which can contain different test strips |
| Test strip storage capacity | Maximum 200 test strips x two storage compartments |
| Processing speed | Maximum 300 samples/hour |
| Sample consumption | Maximum 225 μL |
| Required sample volume | Minimum 950 μL |
| Sample container | Sample tubes (length: 95 – 110 mm, diameter: ø14.0 – 15.8 mm) |
| Applicable racks | ARKRAY racks |
| Sample loading capacity | One-way transportation (default): Maximum 50 samples Loop transportation: Maximum 100 samples |
| Warm-up time | Maximum 3.5 minutes |
| Display | 10-inch tablet |
| Memory capacity | Normal and STAT measurements: 13800 tests Control measurement: 1200 tests Error/trouble history: 100 records |
| Weight | Main body:Approximately 47 kg, Sampler: Approximately 4 kg |
| Dimensions | 530 (W) ×648 (D) × 590 (H) mm (including the sampler) |
