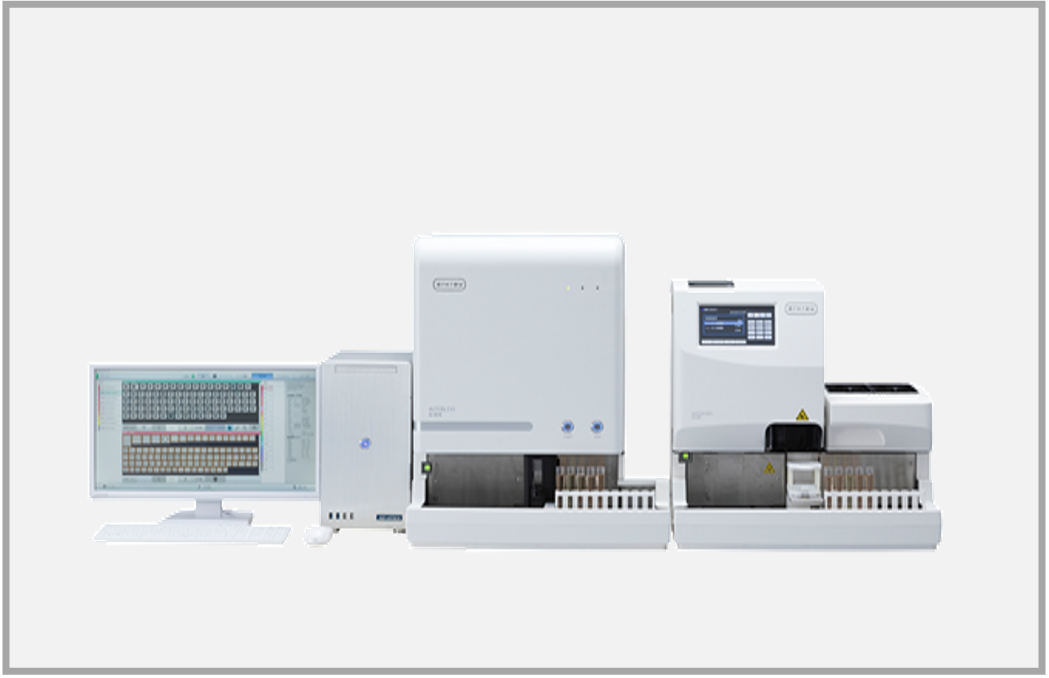

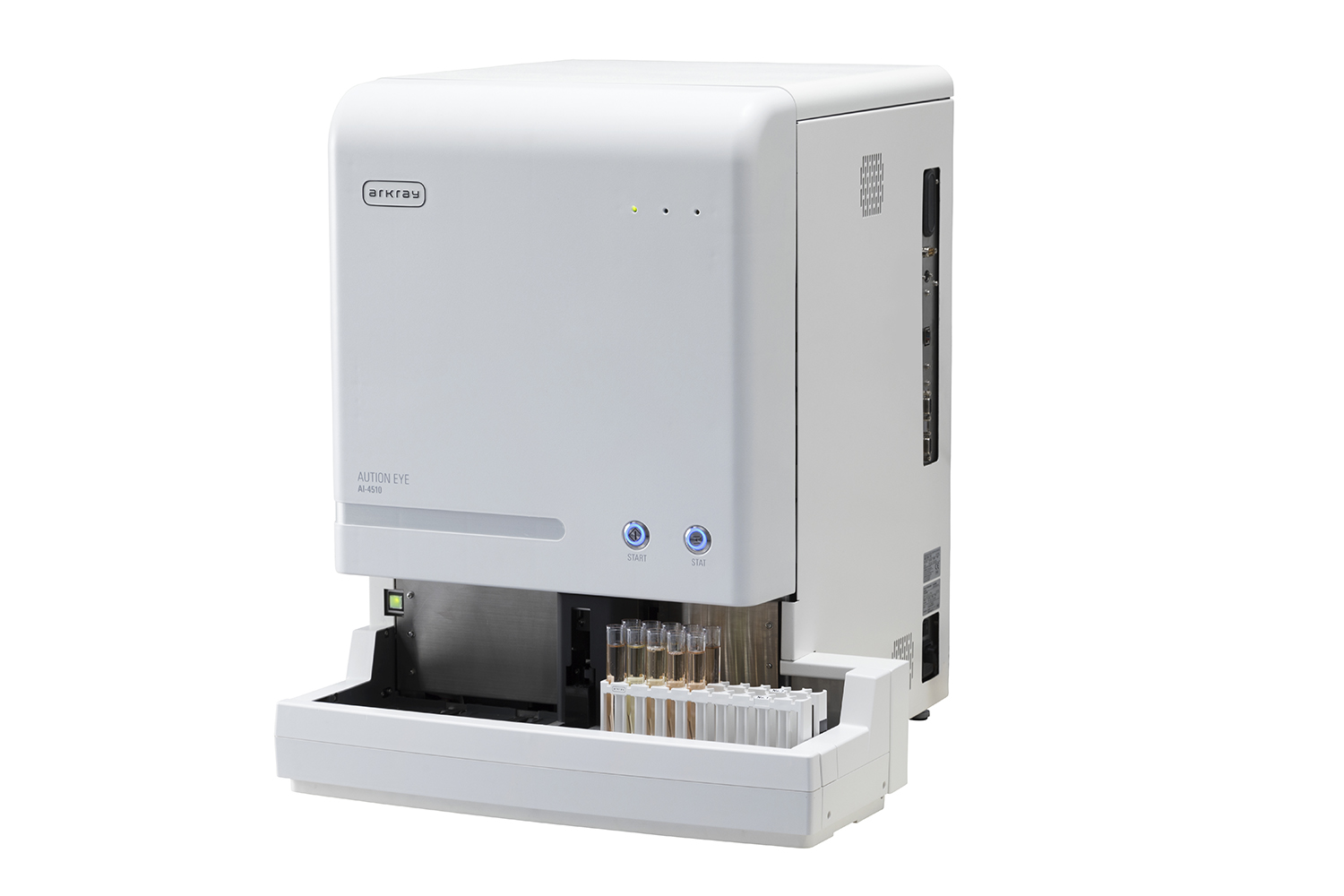

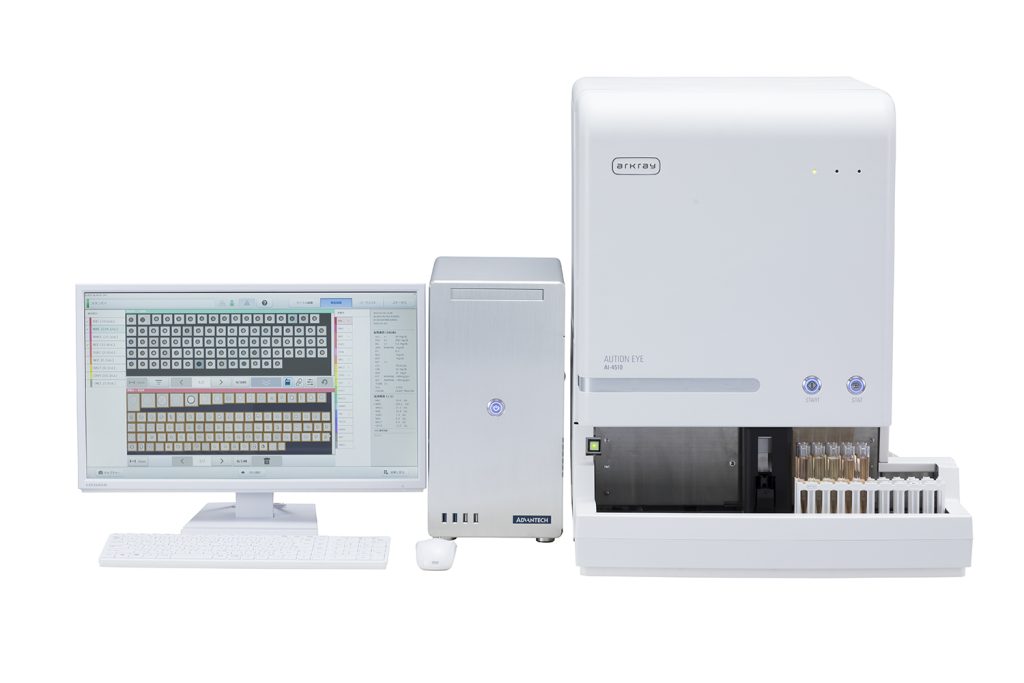

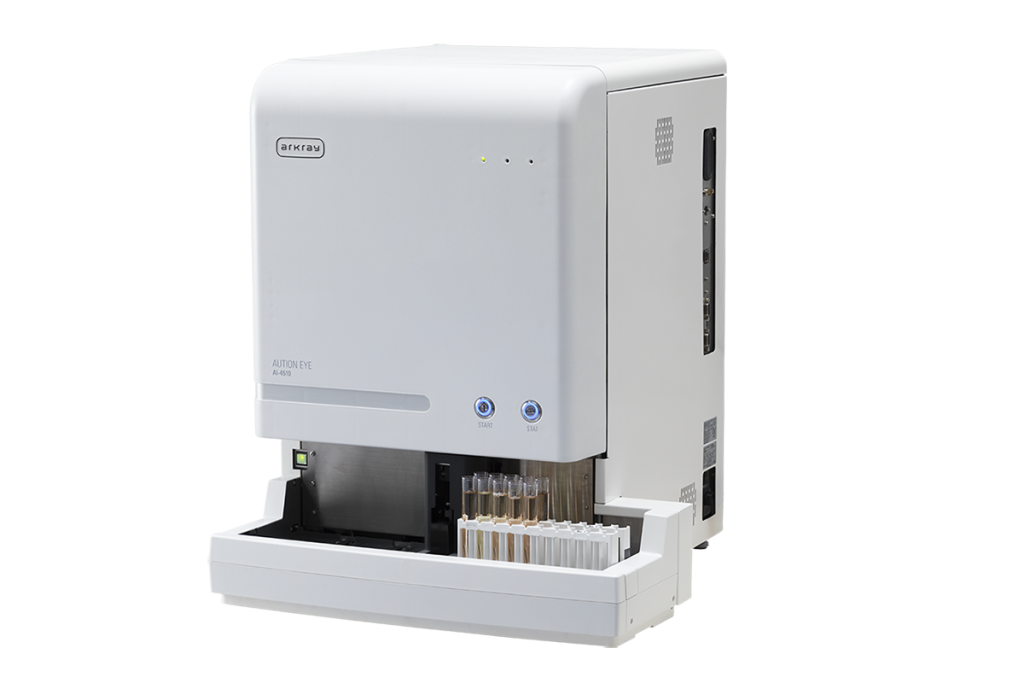

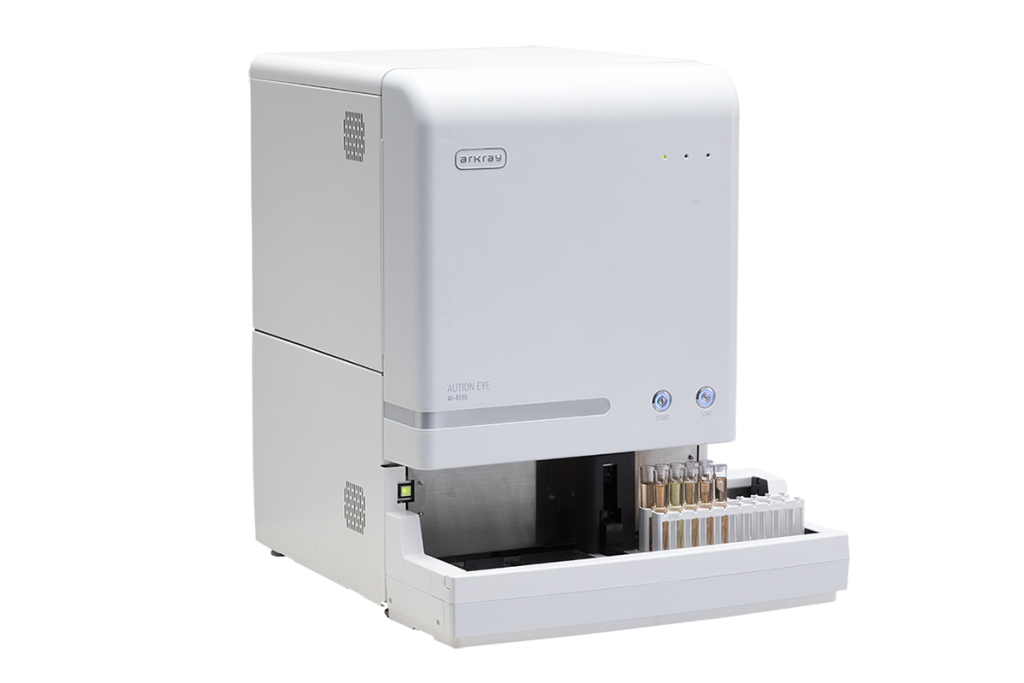

Urine Sediment Analyzer
AUTION EYE AI-4510
Your reliable partner in urine sediment analysis
Save Time in Urine Sediment Analysis
Particles captured by AUTION EYE are automatically classified using a proprietary algorithm. Users can also review the captured images and, if necessary, manually reclassify them.
By automating urine sediment analysis through these functions, laboratories can focus microscopic examination on the specimens that truly require it.
User Friendly Operation
- Gating Function
- Cross-Check Function
- Compact Footprint
Useful Library(Atlas images)
Our Atlas image collection with standard particle images is installed and can be displayed on the same screen, and users can also add their own images for standardized particle analysis and educational use within the facility.
Specification
| Measurement object | Urine |
| Mesurement items | Automatic classification items: 12 items: Red blood cells (RBC), White blood cells (WBC), White blood cell clumps (WBCC), Squamous epithelial cells (SQEC), Non-squamous epithelial cells (NSE) , Hyaline casts (HYAL), Unclassified casts (NHC), Bacteria (BACT), Crystal (CRYS) , Yeast (YST), Mucus (MUCS), Sperm (SPRM) Manual classification items: Red blood cells (2), Crystal (10), Casts (6), Yeast (1), Epithelial cells (2), Fat (2), Other categories (5) |
| Required sample volume | Minimum 2mL |
| Mesurement principal | Flow cell digital imaging |
| Dimensions | 530 (W)x600 (D)x650 (H)mm (incl. sampler) 530 (W)x200 (D)x135 (H)mm (sampler only) |
| Weight | Approximatly 57kg (incl. sampler) |
